Double layer catalytic converter non-intumescent support mat

Short Description:

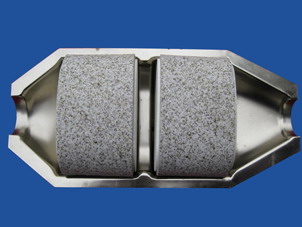

hl- 200 series product is an excellent non-intumescent mat that can be applied in most automotive catalytic converter support mounting system. hl- 200 series product can provide mechanical support, sealing, protection, thermal and sound insulation or other functions for the catalytic converter, also it could be applied in end cone insulation and other extreme conditions of senior thermal insulation.

Send email to us

Product Detail

Product Tags

Product profile

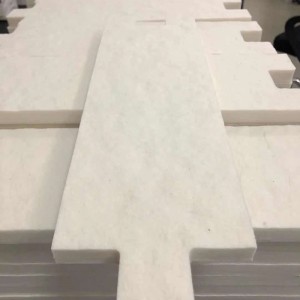

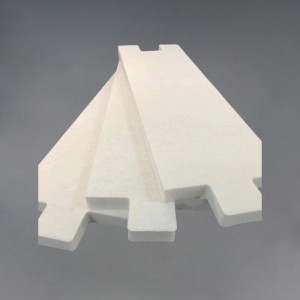

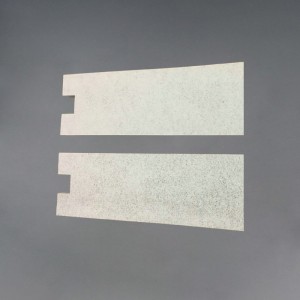

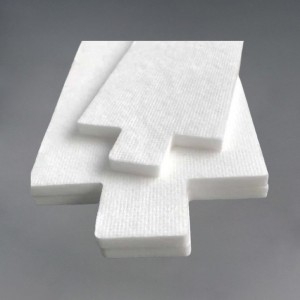

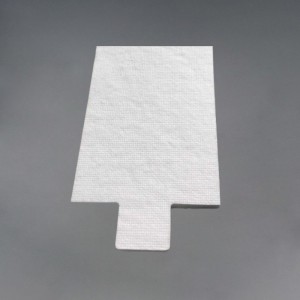

HL- 200 is made of polycrystalline wool（PCW*）. By using this type of ceramic fiber, HL- 200 can maintain strong structure and excellent durability at high temperature （lower than 1250℃）, also will improve erosion resistance, there is no need to add extra edge protecting material or measures. The PCW fiber is an non-hydrophilic material and it will not be affected by oil, water or urea in real applications.

Due to the excellent bending performance of HL-200, HL-200 is easy to wrap or shape. HL-200 is easy for canning, no matter stuff mounting, tourniquet mounting or other mounting methods. HL-200 can be applied in different catalytic converters that including the exhaust system of gasoline, diesel（SCR/DPF/DOC/ASC）and natural gas applications.

The classification of PCW fiber belongs to environmental friendly material, therefore HL- 200 can be used in Europe, the United States, Japan and other markets around the world.

Product features and functions：

High performance polycrystalline wool to provide excellent physical properties；
Excellent high temperature stability, stable working temperature to 1180℃；
Excellent insulation capability；
Low thermal conductivity and low heat capacity；
Excellent flexibility, easy to shape；
Good erosion resistance and resist acid alkali corrosion

Specifications of the products

Type	HL-200-1200	HL-200-1600	HL-200-2000
Basis weight （g/m²）	1200	1600	2000
*Thickness （mm）	8.7	11.6	14.4
Fiber index (%)	>92	>92	>92

* Thickness measured at 4.9 KPa

More information for different basis weight product, please check on Product Quick Reference Sheet.

Typical product component

Polycrystalline mullite fibre	88~96%
Binder	4~12%

Product property

	HL-200-1200	HL-200-1600	HL-200-2000
Loss on ignition(LOI)@800℃ (%)	4~12	4~12	4~12
Classified temperature （℃）	1600	1600	1600
Temperature limit (℃)	1250	1250	1250
Density(kg/m³)	138	138	138
Basis weight （g/m²）	1200	1600	2000
Minimum bending radius（mm）	﹤50	﹤50	﹤50
Tensile strength （Kpa）	≥50	≥50	≥50
Thermal conductivity [W/（m*K）]
@Room temperature @400℃ @800℃	﹤0.035	﹤0.035	﹤0.035
	﹤0.1	﹤0.1	﹤0.1
	﹤0.18	﹤0.18	﹤0.18

Application design and calculation

According to the product data which is obtained by our laboratory tests, performance in different application condition is slightly different. We recommend to calculate and verify it based on the specific application environment.

Please consult for more details from our sales engineer or application engineer if yoare interested in any other non-standard product（BW 1000-4000 g/m²）.
